5kw Wall Mount LiFePO4 Battery Home Energy Storage 51.2V 100Ah Lifepo4 Battery Powerwall

Certification
China GUANGDONG MATRIX NEW ENERGY CO.,LTD certification
China GUANGDONG MATRIX NEW ENERGY CO.,LTD certification
I'm Online Chat Now

5kw Wall Mount LiFePO4 Battery Home Energy Storage 51.2V 100Ah Lifepo4 Battery Powerwall

5kw Wall Mount LiFePO4 Battery Home Energy Storage 51.2V 100Ah Lifepo4 Battery Powerwall
5kw Wall Mount LiFePO4 Battery Home Energy Storage 51.2V 100Ah Lifepo4 Battery Powerwall 5kw Wall Mount LiFePO4 Battery Home Energy Storage 51.2V 100Ah Lifepo4 Battery Powerwall 5kw Wall Mount LiFePO4 Battery Home Energy Storage 51.2V 100Ah Lifepo4 Battery Powerwall

Large Image :  5kw Wall Mount LiFePO4 Battery Home Energy Storage 51.2V 100Ah Lifepo4 Battery Powerwall

Product Details:
Place of Origin: Shenzhen, China
Brand Name: MATRIX/OEM/ODM
Certification: MSDS/ UN38.3/CE/ISO
Model Number: 51.2V100AH
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000PCS per month

5kw Wall Mount LiFePO4 Battery Home Energy Storage 51.2V 100Ah Lifepo4 Battery Powerwall

Description
Battery Type:: Lifepo4 Prismatic Case Material: Iron
Energy: 5120W Comunicaton Function: RS485/232/CAN
Life Times: >3500 Demmension: 500*520*185/mm
Application: Home Energy Storage
High Light:

5kw Wall Mount LiFePO4 Battery

,

Energy Storage Lifepo4 Battery Powerwall

,

51.2V Lifepo4 Battery Powerwall

48V/51.2V100Ah 5kw LiFePO4 Wall Mounted Battery Lithium Battery For Home Energy Storage







Specification



POWER & ENERGY

Nominal Voltage 51.2V
Nominal Capacity 100Ah
Continue/Max Discharging current 100A
Continue Charging Current 20A
Energy Density 5.12kWh
Cell type Lithium Iron Phosphate (LiFePO4)
Deep cycle life

>3500 times(25℃, 0.5C charge,

1C discharge, DOD

70%(SOC 0~100%)





SIZE & WEIGHT ADVANTAGE

Model BP-S5156P
Weight 50kg
Size 500* 520* 185/mm
TECHNOLOGY ADVANTAGE
Usable Capacity (AH) 56AH
Depth of Discharge 100% DOD
Self Discharge ≤3% per mo
Chemistry Lithium Iron Phosphate (LiFePO4)
Cell Type LF100lA(3.2V 100Ah)
Modular Parallel Connection
TEMPERATURE PERFORMANCE
Charge Temperature 0℃ to 45℃(32℉ to 113℉)
Discharge Temperature -20℃ to 60℃(-4℉ to 140℉)
Storage Temperature

0℃ to 45℃(32℉ to 113℉)















ADVANTAGE SAFETY & PROTECTION ADVANTAGE

Built in Automatic Battery Protection System Yes
Automatic Low Voltage Disconnect Yes
Automatic Short Circuit Protection Yes
Automatic Over Voltage Protection Yes
Automatic Over Current Protection Yes
Automatic Internal Cell Balancing Yes
Automatic Over Charge Protection Yes
Automatic Over Discharge Protection Yes
Automatic Over Temperature Protection Yes

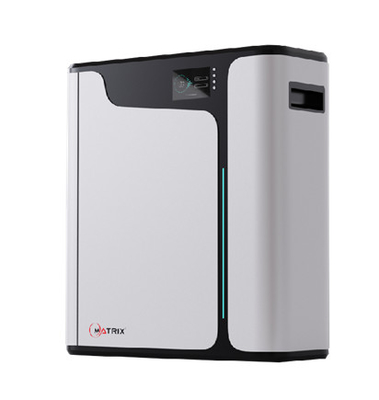

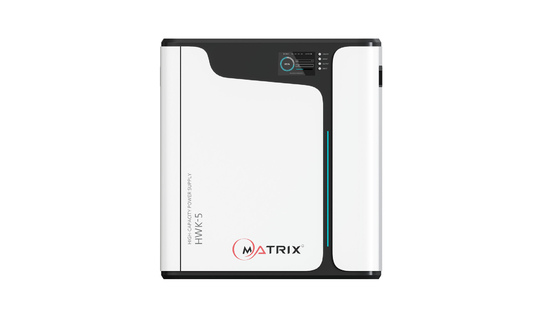

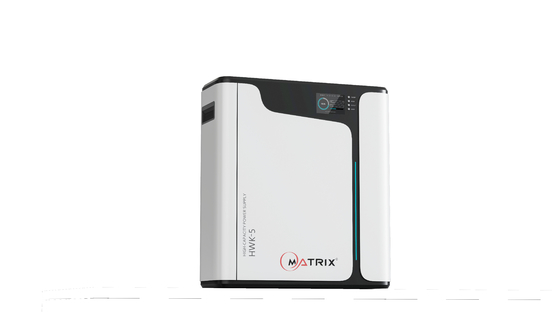

Detailed Images
5kw Wall Mount LiFePO4 Battery Home Energy Storage 51.2V 100Ah Lifepo4 Battery Powerwall 05kw Wall Mount LiFePO4 Battery Home Energy Storage 51.2V 100Ah Lifepo4 Battery Powerwall 15kw Wall Mount LiFePO4 Battery Home Energy Storage 51.2V 100Ah Lifepo4 Battery Powerwall 25kw Wall Mount LiFePO4 Battery Home Energy Storage 51.2V 100Ah Lifepo4 Battery Powerwall 3


Our Service
1. All of your inquires and emails will be replied within 12 hours.
2. Our professional engineer team can provide you one-stop battery solution.
3. Battery voltage, capacity, case material, BMS and dimension can be customized.
4. All of our LiFePO4 battery will be tested one by one before shipment.
5. We can print your own logo on case or make customized label.
6. We offer 5 years warranty and continuous technical support.

7. Considerate after-sales service: timely tracking services, and efficient feedback for the problems during battery usage.





Quick Details

1) Long cycle life
2) No memory effect
3) High energy density
4) Pollution-free
5) High discharge rate
6) Light weight
7) High working voltage for single battery cells
8) Capacity, resistance, Voltage, platform time consistency is good
9) With short-circuit production function, safe and reliable
10) Good consistency, low self-discharge





FAQ

Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Samples need 10-15 days, mass production time needs 2-5weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. No, 5pc for sample checking is available, we have MOQ50 for mass production.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 7-20 days to arrive. Airfreight and seafreight is also optional.
Q5. How to proceed with an order?
A.Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production and then delivery
Q6. Is it OK to print my logo on the product?
A.Yes.OEM/ODM services offered
Q7.Is this product safe?
A:Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance;
Q8.Which certificates do you have?
A:We have CE/ROHS/UN38.3/MSDS ...etc.
Q9.How about warranty?
A:5 year warranty.
Q10: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers’ benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from,we’ll do our best to serve our customers to help them save time & money!
3.one selection,a lifelong conpanionship!
