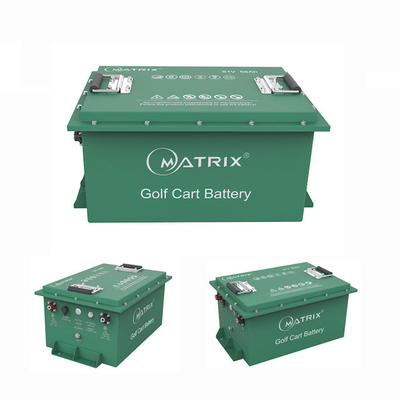

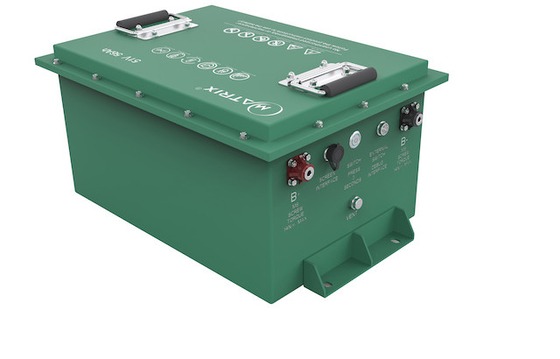

Product Details:
|
| Product Name:: | LFP 51v 56Ah Battery | Rated Voltage:: | 51.2V |
|---|---|---|---|
| Nominal Capacity:: | 56Ah | Combination:: | 16S1P |
| Battery Size:: | 460*332*234/mm | Weight:: | 35kgs / 77 Lbs |
| Mileage:: | 35-50 Km | Life Cycle: | >3500 Times |
| Application:: | Golf Cart/RV/Yachat/Forklift/Marine/Solar/UPS | Charge Current:: | 22A |
| Discharge Current:: | 50A(Standard) | Max Discharge Current:: | 200A(10S) |
| OEM/ODM: | Available | ||
| High Light: | 51v 56ah Golf Cart Lithium Battery,35kgs Lifepo4 Lithium Ion Battery,51v Golf Cart Lithium Battery MATRIX |
||
Advantage of the lifepo4 battery:
◆ Longer life compare to lead acid battery
◆ Up to 60% weight saving
◆ 100% usable capacity
◆ More energy with 1/3 smaller size
◆ Less than 3% self discharging
◆ Built in BMS
◆ Free maintenance
◆ Easy installation
◆ Eco-friendly
◆ Quality guaranteed
Key Features :
Applications :
Specifications:
POWER & ENERGY
THE ELECTRIC ADVANTAGE
| Nominal Voltage | 51V |
| Nominal Capacity | 56Ah |
| Continue/Max Discharging current | 50A/200A(10S) |
| Continue Charging Current | 22A |
| Energy Density | 2.856kWh |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Deep cycle life |
>3500 times(25℃, 0.5C charge, 1C discharge, DOD 70%(SOC 0~100%)
|
SIZE & WEIGHT ADVANTAGE
| Model | BP-S5156P |
| Weight | 35kg |
| Size | 460* 334* 232mm |
| Usable Capacity (AH) | 56AH |
| Depth of Discharge | 100% DOD |
| Self Discharge | ≤3% per mo |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cell Type | LF80A(3.2V 56Ah) |
| Modular | Parallel Connection |
| Charge Temperature | 0℃ to 45℃(32℉ to 113℉) |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) |
ADVANTAGE SAFETY & PROTECTION ADVANTAGE
| Built in Automatic Battery Protection System | Yes |
| Automatic Low Voltage Disconnect | Yes |
| Automatic Short Circuit Protection | Yes |
| Automatic Over Voltage Protection | Yes |
| Automatic Over Current Protection | Yes |
| Automatic Internal Cell Balancing | Yes |
| Automatic Over Charge Protection | Yes |
| Automatic Over Discharge Protection | Yes |
| Automatic Over Temperature Protection | Yes |
Notes:
1) The charging current should be less than the maximum charging current specified in the product specifications. A charging current greater than the recommended current may damage the battery;
2) The discharge current should be less than the maximum discharge current specified in the product specifications; the discharge current greater than the recommended current may damage the battery;
3) Do not reverse the polarity of the battery pack for any reason;
4) Do not charge in reverse polarity;
5) Please use a professional charger for charging;
6) If the lithium battery is not used for a long time, it should be charged with 50%~80% power, stored separately in a dry and cool environment, and recharge the battery every 3 months to avoid long storage time and low power due to self-discharge of the battery, Will cause the battery performance,characteristics or battery function to decline;
7) A single battery cell is not waterproof, and the finished battery pack has a waterproof layer to prevent rain. But do not soak in water and do not expose the battery to a high-temperature open flame.
8) If you want to DIY yourself, please ensure that the battery voltage is the same when installing the battery. Be careful not to short-circuit the battery. There are more protection boards, batteries, and finished battery packs on sale in the store. You can view more.
